With each passing day, energy efficiency is becoming increasingly important, and it’s not just limited appliances and insulation.
One often overlooked aspect of a building’s energy efficiency is its roofing system. An energy-efficient roof makes a big difference in how much energy you use, how much you pay for utilities, and how comfortable the interior of your house is. In this article, we’ll talk about the benefits and features of energy-efficient roofing. We’ll focus on how it can help the environment, save you money, and increase the sustainability of your home or business. Whether you’re a homeowner, a business owner, or a worker in the industry, it’s important to know why energy-efficient roofing is a smart choice for a greener and more climate-conscious future.
But first, we will look at the role ventilation plays in achieving energy efficiency:
The Role of Ventilation in Energy Efficiency
Energy efficiency is greatly aided by ventilation, as it improves airflow, regulates temperature, and keeps a building’s occupants comfortable.
Temperature Regulation: A building’s internal temperature can be maintained by allowing hot air to escape and cool air to enter through a proper ventilation system.
Moisture Control: Adequate ventilation reduces moisture accumulation and prevents the deteriorating effects of mold and rot, improving the overall indoor air quality.
Energy Savings: Efficient ventilation reduces the reliance on mechanical cooling systems, resulting in lower energy consumption and reduced utility costs.
Roof Longevity: Adequate airflow minimizes the risk of damage caused by excess heat and moisture, extending the lifespan of the roofing materials.
Types of Ventilation:
Intake and exhaust vents are two key components of a balanced ventilation system:
Ventilation Types:
- Intake ventilation involves drawing in fresh air from outside, typically through soffit vents, ensuring a continuous supply of cool air to the attic or roof space.
- Exhaust ventilation: It allows hot air to escape from the attic or roof space, typically facilitated by vents at or near the roof’s ridge.
Understanding The Soffit, Fascia, and Eaves
The soffit, fascia, and eaves all play important roles in helping to reach optimal energy efficiency levels. So let’s get more in-depth into the individual roles that each plays in a roofing system:

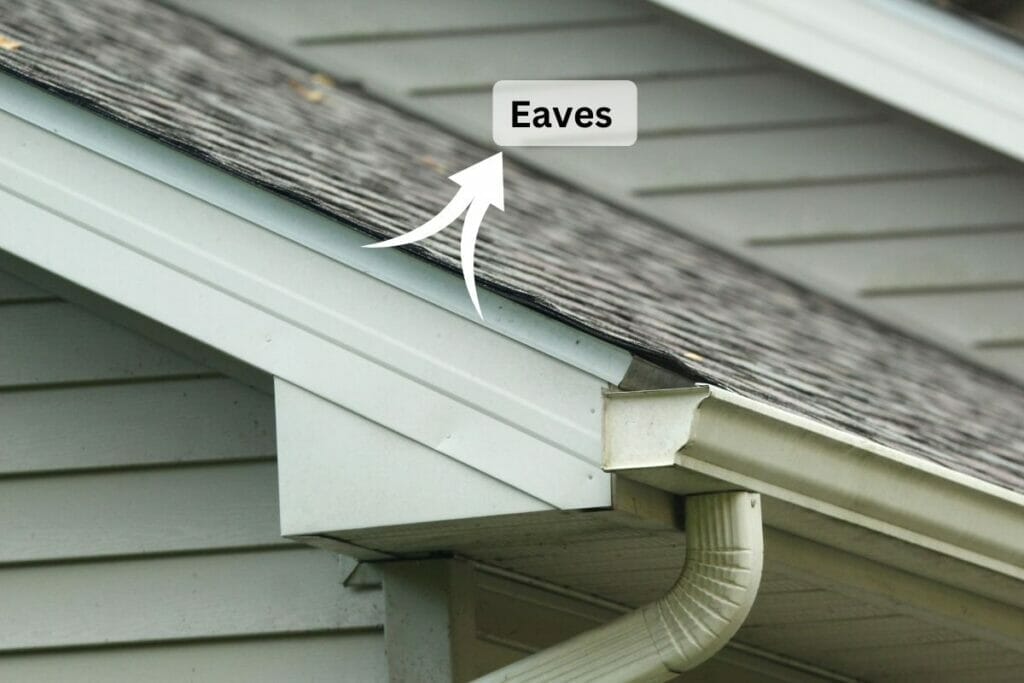

Eaves:
Eaves are also known as the edges of the roof that overhang the sides of a home. A roof’s eaves offer protection against rainwater runoff, thereby preventing the water from penetrating a building’s walls.
Fascia:
The fascia is a horizontal board or panel that runs along the lower edge of a roof, attached to the ends of the roof rafters or trusses, and provides protection to these components. Without it, there would be a gap so its sole purpose is to prevent moisture from entering the roofing structure. It also serves as a decorative element and supports the gutter system.

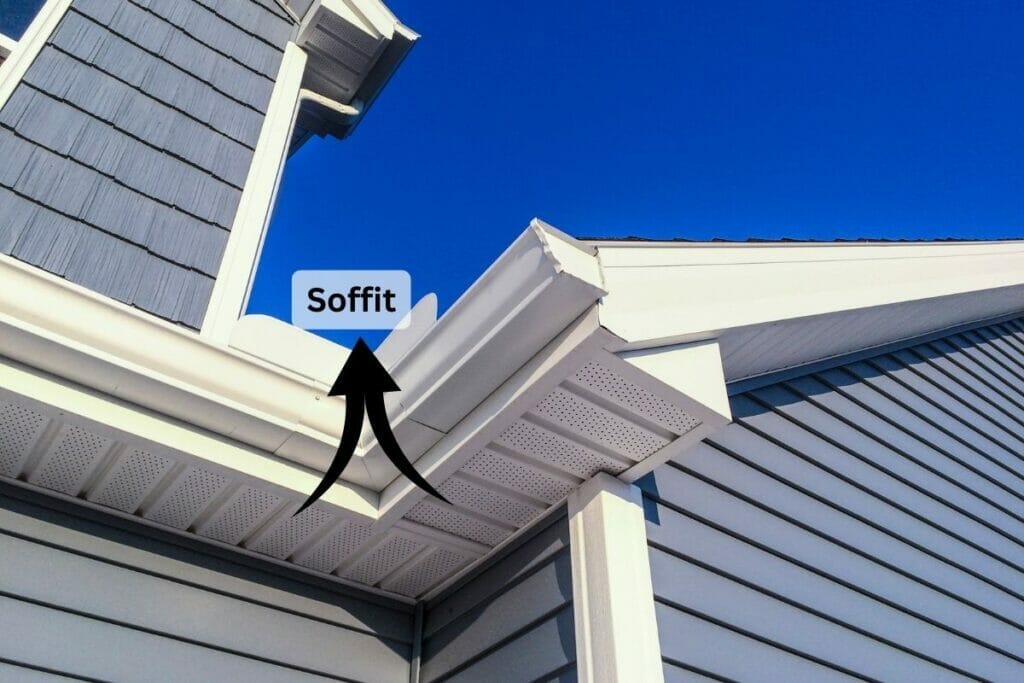

Soffit:
The soffit is located below the fascia and serves an aesthetic and functional duty. Soffits contribute to the appearance of a building by providing a finished look to the underside of the roof overhang. Not only does it add to the overall look of a roof, but soffits also play a major role in facilitating efficient ventilation and energy efficiency when soffit vents are installed.
| Soffit | Fascia | Eaves |
|---|---|---|
| The soffit refers to the material located on the underside of the roof’s overhang. | The fascia is a horizontal board that runs along the roof’s edge, usually where it meets the walls. | Eaves are the edges of the roof that overhang beyond the external walls of a building. |
| Soffit vents allow fresh air into the attic to reduce heat and moisture. | It provides a protective covering to prevent moisture from entering the roofing structure. | Eaves help facilitate proper ventilation. |
Ventilation and Energy Efficiency
Proper ventilation in a roofing system is important for several reasons, including the following:
Prevents Moisture Buildup
When air cannot circulate freely in the attic, moisture leads to the growth of mold and mildew, and eventually rotten wood. This puts the attic at risk for damage to the insulation and other materials.
Reduces Energy Costs and Consumption
The attic tends to stay cooler in the summer and warmer in the winter if it has adequate ventilation. This may result in reduced heating and cooling costs due to less use of your HVAC system. A U.S. Department of Energy study found that properly ventilating an attic can save up to 15% on cooling and 10% on heating costs.
Prevents Ice Dams
Proper ventilation can prevent the formation of ice dams in the winter months. When the warm air from inside the house rises to the attic, it can melt the snow on the roof, causing ice dams to form. Melted snow runs off the roof, and refreezes along the colder eaves of a roof, forming barriers that stop water from draining off your roof. This can cause leaks in the ceiling, and walls.
The Role of The Soffit, Fascia, And Eaves In Ventilation
The soffit, fascia, and eaves are all important parts of a roof that contribute to proper ventilation. Soffits and eaves are often used to install vents, which draw in cooler air to be circulated throughout the home.
The combination of the soffit and fascia is essential for proper ventilation. Soffit panels with small vents allow fresh air into the attic and are installed under the eaves. The fascia board keeps the soffit in place and provides a finished look. By maintaining the integrity of the soffit, the fascia indirectly supports ventilation.
Eaves play a significant role in enhancing energy efficiency and ventilation in buildings. By providing shade, eaves retain less solar heat, lowering the need for cooling. They also contribute to natural ventilation by creating a gap between the roofline and walls, allowing fresh air to circulate and removing stale air. They work in conjunction with soffits for effective airflow.
The fascia is also important for ventilation because it protects the gap between the roof and walls from moisture damage and supports the soffit. This combination of components ensures proper ventilation, prevents moisture buildup, improves energy efficiency, and enhances the roofing system’s overall performance.
Design Considerations for Energy-Efficient Roofing
Soffit vents are important in ventilating the attic and preventing heat buildup. The effectiveness of these vents is heavily dependent on the amount that are installed. The proper amount of vents ensure enough airflow to remove heat from the attic. If the vents are too small, they will allow heat to build up. The general rule of thumb is to install one square foot of soffit vent for every 150 square feet of attic space.
For the best ventilation, soffit vents should be paired with ridge or gable vents. These vents exhaust hot air from the attic space, allowing the cooler air that soffit vents bring in, to replace it.
Integrating Different Roofing components For Optimal Ventilation
Integrating roofing components, vent size, and placement is also important for optimal ventilation. The roofing materials, insulation, and flashing should all be designed to work together to promote airflow.
Roofing materials should be chosen for their ability to reflect heat. Lighter materials reflect more heat than dark ones, keeping the attic cooler.
All gaps and cracks along the roof deck and attic should be filled with insulation materials. This helps prevent air leaks out of the attic and heat transfer into the home. To ensure proper airflow and prevent outside air from entering the attic, it is also crucial to install flashing, which seals all openings in the roof.
Best Practices For The Design of An Energy-Efficient Roof
When it comes to designing an energy-efficient roof, many different practices should be followed. These practices include:
- Using roofing materials with a lighter color.
- Putting vents in strategic positions. Including pairing soffit and ridge vents
- Using roof and attic insulation to reduce heat transfer and stabilize indoor temperatures.
- Utilizing reflective roofing materials to reduce heat absorption.
- Sealing gaps, cracks, and air leaks to prevent energy loss and improve temperature control.
Final thoughts
When thinking about energy-efficient roofing options, you should always take into account the soffit, facia, and eaves of your roof. If any of these components get damaged, or if you’re looking to install soffit vents on your roof, contact the experts at ReNew Roofing.
Our experienced team will help you explore the available options, and help you determine what else you can do to make your home as energy efficient as possible. If you live in Wisconsin or the surrounding area, call us today to schedule a consultation and get started on your roofing project. Call us today (813) 400-3329!
